Original-Peddinghaus
Combined Section Shear with
Punch Unit and Notcher

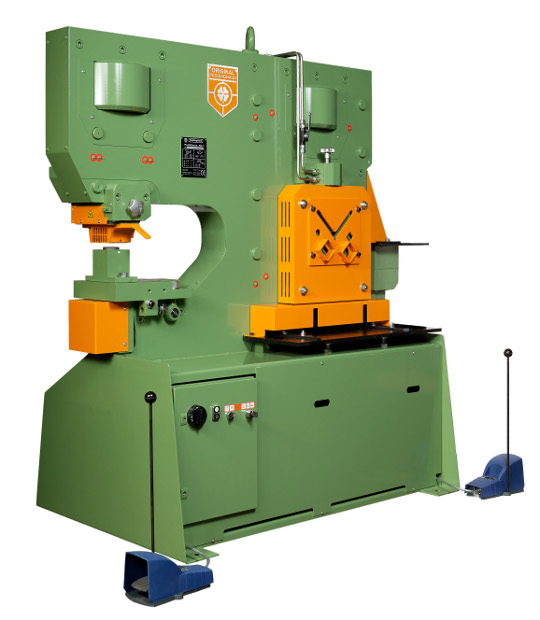

Peddimax No. 1

Peddimax No. 1

1250 kN

Technical Data

  Flat Bar Shear

cuts flat bar with minimum distortion

up to mm

500 x 20 300 x 22

angle iron, 45° cut

up to mm

100 x 12

blade cut length

mm

510

work height

mm

720



  Section and Bar Stock Shear

cross section

max. mm2

3500

stroke infinitely adjustable

mm

10-50

cuts with standard blades 90°:



angle iron, 90° cut

up to mm

150 x 12

rounds

mm

50 + 25

squares

mm

50 + 30

cuts with special knives:





channels, 90° cut

up to mm

200

I-beams, 90° cut

up to mm

200

work height (to centre of blades)

mm

1155



  Notcher

with square notching attachment:



plate

up to mm

13

angle iron

up to mm

90 x 10

channels in flange

mm

80-160

I-beams in flange

mm

80-160

notch width

mm

65

notch depth

mm

85

with triangular notching attachment 90°:



plate

up to mm

13

angle iron

up to mm

70 x 10

channels in flange

mm

80-160

I-beams in flange

mm

80-160

notch depth

mm

65

work height

mm

1100



  Punch Unit

rated capacity

kN

1250

stroke infinitely adjustable

mm

10-50

number of strokes, punch unit, 20 mm

min-1

29

throat depth

mm

510

work height

mm

1100

punches with standard punching attachment:



with flat die bolster

mm

Ø 39 in 24

with universal die block

mm

Ø 32 in 24

channels in flange

mm

100-380

I-beams in flange

mm

100-340

channels in web

mm

100-400

I-beams in web

mm

100-500

punches with oversize punching attachment



• o.p.a. 58 / 65

up to mm

Ø 58 in 15



up to mm

Ø 65 in 14

• o.p.a. 90

up to mm

Ø 90 in 10



Machine Data



power rating

kW

11

charge of oil

l

103

net weight with oil

appr. kg

2750

overall machine dimensions

L x W x H cm

204x102x191

ref. no.



44600



All capacities refer to material with a tensile strength of 450 N/mm2. We reserve the right to make design alterations without notice.



Standard Scope of Delivery

  • flat shear blades, 520 mm long, with four cutting edges, also for shearing
    angle iron 45°
  • material support table with gauge stops on the flat shear station
  • section shear knife for shearing angle iron 90° as well as rounds and squares
  • quick-change punching attachment up to 39 mm Ø, for punches and dies
    of the blue series or with universal die block for die no. 3
  • height-adjustable and swing-away stripper with exchangeable plate
  • square notching attachment
  • material support table on the notcher station
  • two two-stage foot pedals and electric control elements on the punch station
    and notcher station
  • hydraulic low pressure spotter for foot operation
  • connecting sockets for external engagement, e. g. via electrical length stop
  • integrated hydraulic power-pack
  • three-phase A.C. motor, 400 Volt, 50 Hz

Accessories

522
electrical contact length stop

533
gauging system WBL 4/10 + 4/10 Plus

549
hydraulic hold down

316
tooling set, punches and dies

510
roller feed conveyor

556
CNC gauging system
