Original-Peddinghaus
Combined Section Shear with
Punch Unit, Notcher and Bending Tool


40800

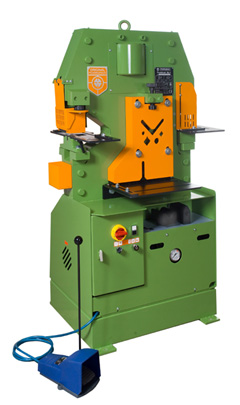

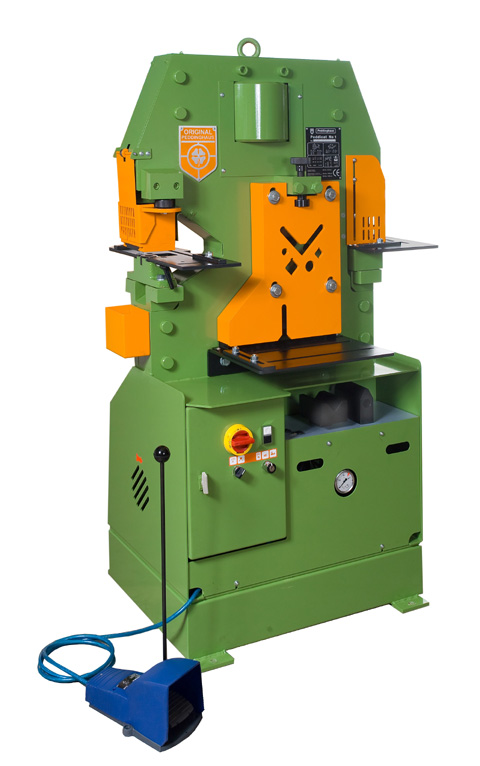

Peddicat No. 1

500 kN

Technical Data

  Flat Bar Shear

cuts flat bar with minimum distortion

up to mm

350 × 13

angle iron, 45° cut

up to mm

100 × 8

blade cut length

mm

370

work height

mm

770



  Section and Bar Stock Shear

cross section

max. mm2

1550

stroke infinitely adjustable

mm

10-36



cuts with standard blades 90°:



angle iron, 90° cut

up to mm

100 × 8

rounds

mm

32 + 17

squares

mm

30 + 18







cuts with special knives:





channels, 90° cut

up to mm

100

I-beams, 90° cut

up to mm

100







work height (to centre of blades)

mm

1059



  Notcher

with square notching attachment:



plate

up to mm

10

angle iron

up to mm

55 × 10

channels in flange

mm

80 - 120

I-beams in flange

mm

80 - 120

notch width

mm

44.5

notch depth

mm

50

  bending tool





flat bar

up to mm

100 × 10

bending punch

mm

60°, R=8

bending die

mm

85°, R=8, D=115

work height

mm

1035



  Punch Unit

rated capacity

kN

500

stroke infinitely adjustable

mm

10 - 36

throat depth

mm

203

work height

mm

1035

punches with standard punching attachment

up to mm

Ø 31 in 12

punches with oversize punching attachment





• SV 58/65

up to mm

Ø 58 in 7



up to mm

Ø 65 in 6



Machine Data



number of strokes, punch unit, 20 mm

min-1

21

power rating

kW

4

charge of oil

l

45

net weight with oil

appr. kg

820

overall machine dimensions L × W × H

cm

100×68×168

ref. no.



40800

All capacities refer to material with a tensile strength of 450 N/mm2. We reserve the right to make design alterations without notice.





Standard Scope of Delivery

  • flat shear blades, 375 mm long, with four cutting edges, also for shearing angle
    iron 45°
  • material support table with gauge stop on the flat shear station
  • section shear knife for shearing angle iron 90° as well as rounds and squares
  • quick-change punching attachment up to 31 mm Ø, for punches and dies of the
    green series
  • material support table on the punch unit
  • swing-away stripper
  • square notching attachment including bending tool
  • material support table on the notcher station
  • foot pedal and electric control elements
  • connecting socket for external engagement, e. g. via electrical contact length stop
  • integrated hydraulic power pack
  • three-phase A.C. motor, 400 Volt, 50 Hz

quick-change punching attachment

square notching
attachment

bending tool



Accessories

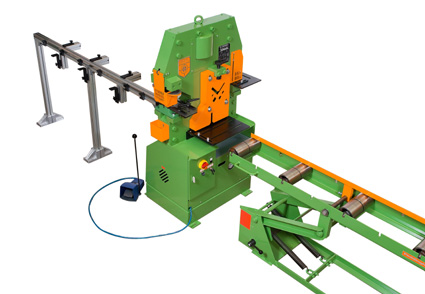

Peddicat No. 1 with gauging bar LML 524 and roller feed conveyor 510



518
material support table

539
material support table

548
material support table

swivel base plate

photo:
Peddiworker No. 1

522
electrical contact length stop

316
tooling set, punches and dies

522 + 548 + 316

Starting set - special price
