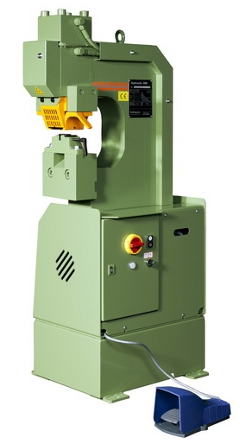

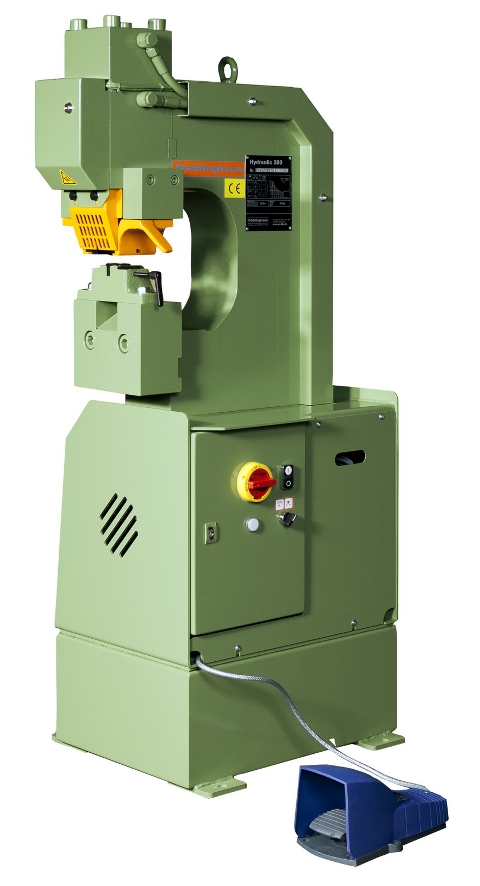

Original-Peddinghaus
Punching Machine with
Hydraulic Drive System

42260

Hydraulic 280

Technical Data

  Punch Unit

rated capacity

kN

280

stroke

mm

30

stroke, adjustable

mm

10-30

number of strokes, 10 mm

mm-1

43

work height to die

mm

1,033

fitting height

mm

223

throat depth

mm

250

width of tool support

mm

225

punches with





• standard punching attachment

up to mm

Ø 31 in 7



up to mm

Ø 15 in 15

• oversize punching attachment

up to mm

Ø 58 in 4



up to mm

Ø 65 in 3.5



Machine Data



power rating

kW

3

charge of oil

l

32

net weight with oil

approx. kg

560

overall machine dimensions

L × W × H cm

73 × 54 × 153

ref. no.



42260



All capacities refer to material with a tensile strength of 450 N/mm2. We reserve the right to make design alterations without notice.





swing-away stripper, height-adjustable



Standard Scope of Delivery

  • quick-change punching attachment up to 31 mm Ø,
    for punches and dies of the green series
  • swivable, height-adustable stripper with exchangeable plate
  • foot pedal and electric control elements
  • integrated hydraulic power pack
  • three-phase A.C. motor, 400 Volt, 50 Hz


Accessories

518
material support table

539
material support table

546
material support table

513
material support table

548 Plus
material support table

316
tooling set, punches and dies
