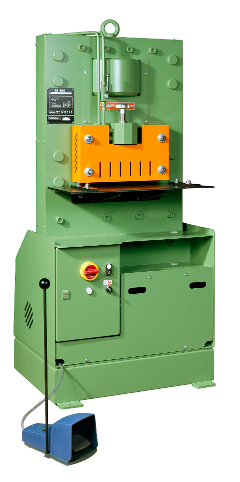

Original-Peddinghaus
Flat Shear with
Hydraulic Drive System




FS 800

Technical Data

   Flat Bar Shear

cuts flat bar

up to mm

400 × 18

or

up to mm

100 × 20



mitre cut 45º

up to mm

115 × 18

blade cut length

mm

425

work height

mm

920

number of strokes, 20 mm

min-1

23

stroke adjustment

mm

10 - 42

power rating

kW

4

charge of oil

l

45

net weight

approx. kg

845

overall machine dimensions

L × W × H cm

73 × 69 × 160

ref. no.



45055

All capacities refer to material with a tensile strength of 450 N/mm2. We reserve the right to make design alterations without notice.





Accessories

522
electrical contact length stop

549
hydraulic hold-down

510
roller feed conveyor, 3 meters

Standard Scope of Delivery

  • flat shear blades, 425 mm long, also for mitre cutting 45º
  • material support table with two adjustable guides for precise angle cutting
  • electric safety circuit; stroke movements that have been initiated
    can be interrupted in any position
  • foot pedal and electric control elements
  • connecting socket for electrical contact length stop
  • integrated hydraulic power pack
  • three-phase A.C. motor, 400 Volt, 50 Hz
