Punching Attachment for an Eccentric Press
for Using Standard Peddinghaus Punching Tools of the

Green Series

Catalogue No 7
Green Series
PDF [459 KB]

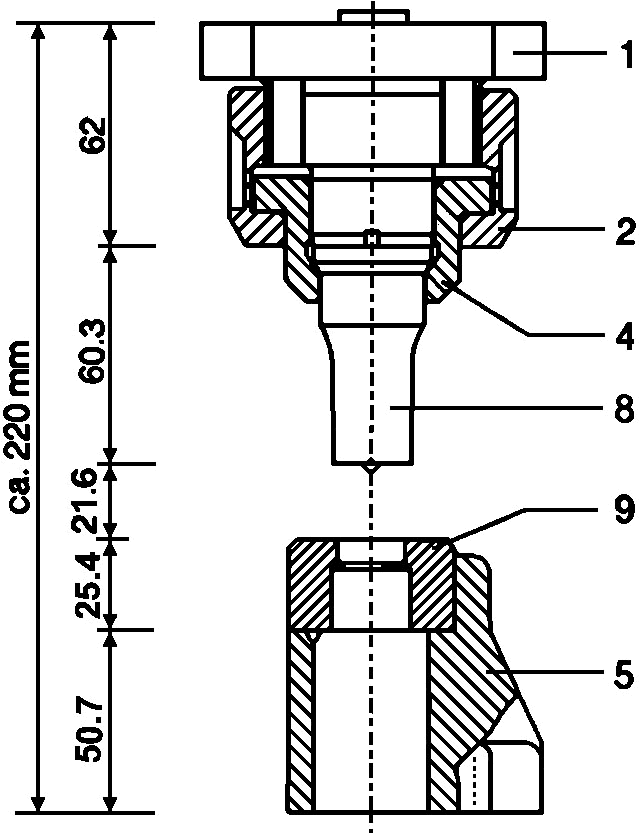

Punching attachment up to Ø 31mm

item

description

part no.

1

punch holder

40615 5 6001 00

2

quick-change locking nut

44081 198 991

3

reducing sleeve

44081 198 503

4

quick-change punch sleeve

42030 6 2191 02

5

die holder

44041 5 4016 02

6

hook spanner

7001810 80090

7

punch no. 2

Ø   3.0 up to 19.0mm

8

punch no. 5

Ø 18.0 up to 32.0mm

9

die no. 3

Ø   3.2 up to 33.2mm

punching attachment up to Ø 31 mm, complete

44041 5 4016 90

consisting of items 1 through 6



printable version PDF [163 KB]





Shank and adapter plate
are not included
in the scope of delivery.
