Punching Attachment for an Eccentric Press
for Using Standard Peddinghaus Punching Tools of the

Blue Series

Catalogue no. 7
Blue series
PDF [476 KB]

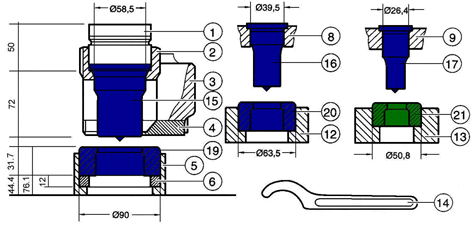

Punching attachment up to Ø 58 mm

item

description

part no.

1

punch holder SV 58

42200 5 4012 02

2

locking nut SV 58

44001 198 812

5

die holder

44041 199 816

6

die ring

44001 198 810

8

reducing sleeve 6 / 7

44001 198 814

9

reducing sleeve 3 / 7

44001 198 813

12

reducing socket 4 / 6

44001 199 818

13

reducing socket 3 / 6

44081 199 817

14

hook spanner

7001810 80090

oversize punching attachment up to Ø 58 mm, complete

44041 5 4012 90

consisting of items 1 through 14







15

punch no. 7

Ø 40.0 up to 58.0mm

16

punch no. 6

Ø 26.5 up to 39.5mm



17

punch no. 3

Ø   3.0 up to 26.5mm

Items no. 3 (stripper) and no. 4 (stripper plate)
are not included in the scope of delivery



19

die no. 6

Ø 40.2 up to 68.7mm

20

die no. 4

Ø   5.2 up to 40.7mm

21

die no. 3

Ø   3.2 up to 33.2mm
